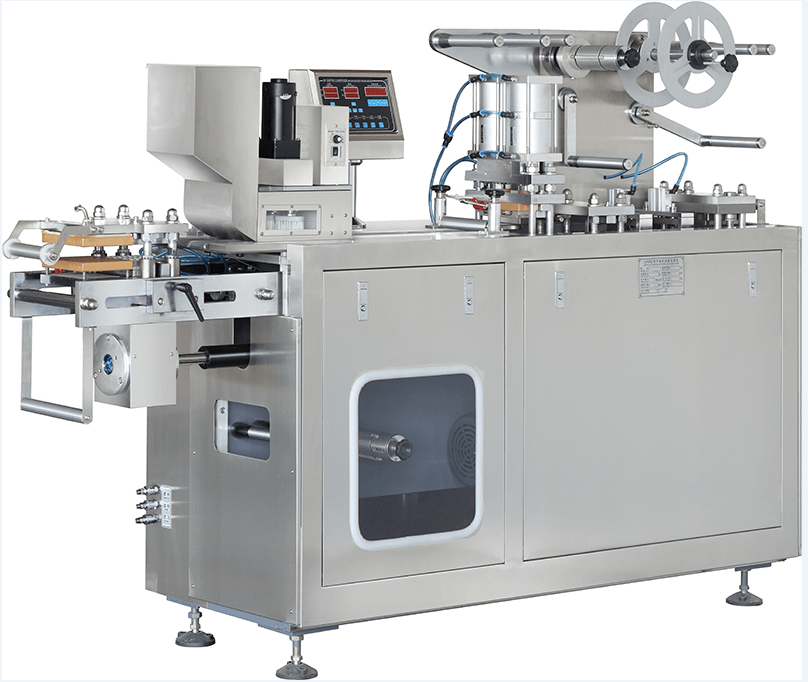

DPP-150 Alu Alu/Alu Pvc Blister Packing Machine For COVID Time
This machine is widely suitable for new product preparation room of pharmaceutical section of ...
Introduction
|
Designed by our company earliest and produced at largest batch process DPP-150 mini-type bubble-cap packing machine is the smallest ,lightest cheapest and energy consumption lowest packing equipment among the similar mode both in domestic and abroad. This machine is widely suitable for new product preparation room of pharmaceutical section of people¡¯s hospital ,small pharmaceutical factory,drug rest . |
|
Specifications
|
Punches frequency |
10-35times/min |
|
Production capacity |
1200-4200 bisters/hour |
|
Max. forming area and depth |
150×110(standard thickness¡Ü15mm) Max. depth 26mm |
|
Stroke range |
50-120mm( can be designed as per user¡¯s required) |
|
Standard plate size |
80x57mm ( can be designed as per user¡¯s required) |
|
Clean compressed air |
0.4∽0.6Mpa |
|
Air compressed capacity |
≥0.3m3/min |
|
Total power supply |
380V 50HZ 3.8kw |
|
Main power |
1.5KW |
|
PVC hard film |
(0.15~0.5)×150mm |
|
PTP Aluminum film |
(0.02~0.035)×150mm |
|
Dialysis paper |
(0.02~0.035)×150mm |
|
Mould cooling |
Tap water or recycling water |
|
Overall dimension |
2315×635×1405mm(L×W×H) |
|
Net Weight |
820KG |
|
Noisey Noise |
<75dB |
