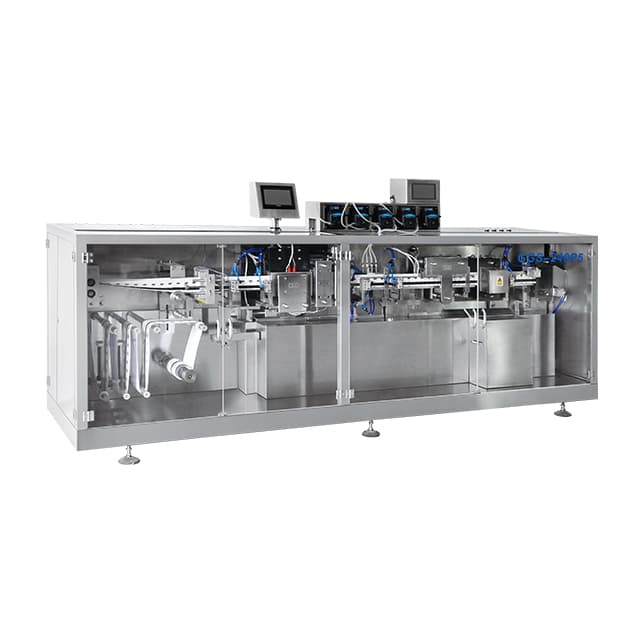

GGS-240(P5) High Quality Plastic Ampoule Filling And Sealing Machine | Liquid Filling And Sealing Machine
The machine is suitable for liquid, medicine, beverage, health product, food, perfume, pesticide, cosmetics, electronic cigarette oil, dairy product, fruit pulp, oil and etc....
Introduction
|
1. PLC control, frequency conversion regulates the speed. 2. Finish the whole process automatically, including 7 steps in total as putting packing material, forming, filling, printing lot number, punching, creasing and cutting apart. 3. Human-machine interface, operate easily and clearly. 4. No leaking, bubbles or overflowing in filling process. 5. All the related parts connecting with liquid adopt high quality of stainless steel, in accordance with GMP standard. 6. Main pneumatic components and electric appliances are imported. 7. Two kinds of filling system: automatic filling or electric peristaltic pump and mechanical filling, precise calculation with slight error.
|
|
Specifications
|
Max Forming Depth |
12mm |
|
Punch Times |
0-25punch/min |
|
Capacity |
66000pcs/hour |
|
Filling Nozzles |
5 head filling |
|
Packing Material Packaging |
PVC/PE PET/PE(0.2-0.4)×240mm |
|
Capacity |
1-50ml |
|
Air Consumption |
0.6-0.8Mpa |
|
Power |
7KW |
|
Voltage |
220V 50/60hz one phase |
|
Weight |
1200Kg |
|
Outer Size L×W×H(mm) |
3200×850×1500 (mm) |
Sample
Our Service
-
Through years of experience, Qualipak provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
-
We can supply m§Ñsk raw materials for you if you can’t buy materials from in your local market.
-
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
-
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
-
1. The whole machine is guaranteed for 1 years.
-
2. Provide professional machine operation and maintenance guidelines.
-
4. Provide 24-hour online professional technical services .
