WFJ Series Dust Collecting Fine Crusher

Description Main Application:Comprised of main frame, auxiliary machine and electrical control cabinet, this machine has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level, thus being widely used for material crushing in pharmaceutical, chemical and foodstuff trades etc. Working principle:The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharge...

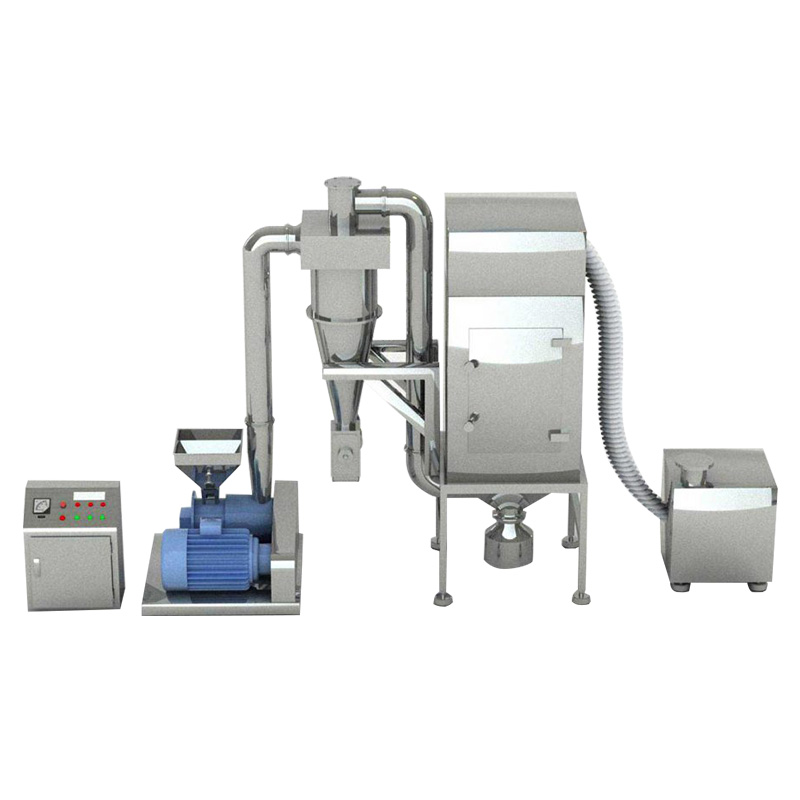

YF Series Traditional Chinese Medicine Dust Collecting Crusher

Crusher Machine

Description Main Application:The machine unit is suitable for such fields as pharmaceutical, food,chemical etc.. With no limit of viscosity, hardness, and fiber content of the material, it is functioned with air cooling, screen-free ,etc. It has good pulverization effect to any material, especially suitable for fiberous Chinese herbs or oily materials. Working principle:The machine unit is made up of hopper,classifier wheel, stepped gear, pulverizing knife, gear ring, pulverizing motor, discharging port, fan blade, collecting box, vacuum box etc., The material is fed into the pulverizing ro...

WFM Series Super Fine Crushing And Vibrating Mill

Crusher Machine

Description Main Application:Used for super fine crushing of fiber material in such trades as pharmaceutic, chemical and foodstuff etc., Including glossy ganoderma, liquorice, shrimp shell and every kind of bone and plant fiber etc., With the crushing fineness reaching micron grade, this machine has reached the international advanced level. Working principle:This machine is a horizontal vibrating mill. The material is fed into the crushing chamber through a hopper and crushed through collision and grinding with grinding barin side the chamber under the effect of vibration. Furthermore, it i...

JCFJ Series Inner-Grading Mechanical Crusher

Crusher Machine

Description Main Application:JCFJ Series inner-grading mechanical crusher is the latest-developed super-fine mechanical grinding machine by combining the domestic and overseas advanced technology. A worm grading device is installed in the machine, which will release the satisfied particle from the grinding chamber to avoid over grinding. In this way we not only makes super fine powder,but also we make the particles uniform and even. This machine can carry out dry-grinding and grading operation for all kinds of organic substance and mineral substance,so the powder made by this machine is wid...

QLDJ Series Fluidized-bed Airflow Crusher

Crusher Machine

Description Main Application:QLDJ Series Fluidized-bed airflow crusher is the latest super-fine airflow grinding machine. It combines the multifold nozzle tube technology, fluidized-bed technology and horizontal grading technology, having realized the integrated technology system containing multiple flow field, fluidized material layer, horizontal grading and mechanicalelectrical integration. It represents the development trend of airflow. The super fine powder made by this machine are widely used in the pharmaceuticals, chemicals, metallurgy, mine, energy, electronics, medicine, pesticide,...

FYF Series Fruits And Vegetables Crusher Machine

Crusher Machine

Description Main Application:The machine is fruits and vegetables food processing machine which is used for restaurants, canteen of large-scale enterprises and Food factory. The machine is to grind fresh fruits and vegetables into mashed and particle form, such as garlic, ginger, vegetables, fresh chili and fruits. Working principle:The machine is made up of material barrel, crushing knives, sealing parts, frame, and motor and driving shaft. The motor is in the frame box and the lower of driving shaft is directly installed on the shaft of motor, the driving shaft stretch into the material b...

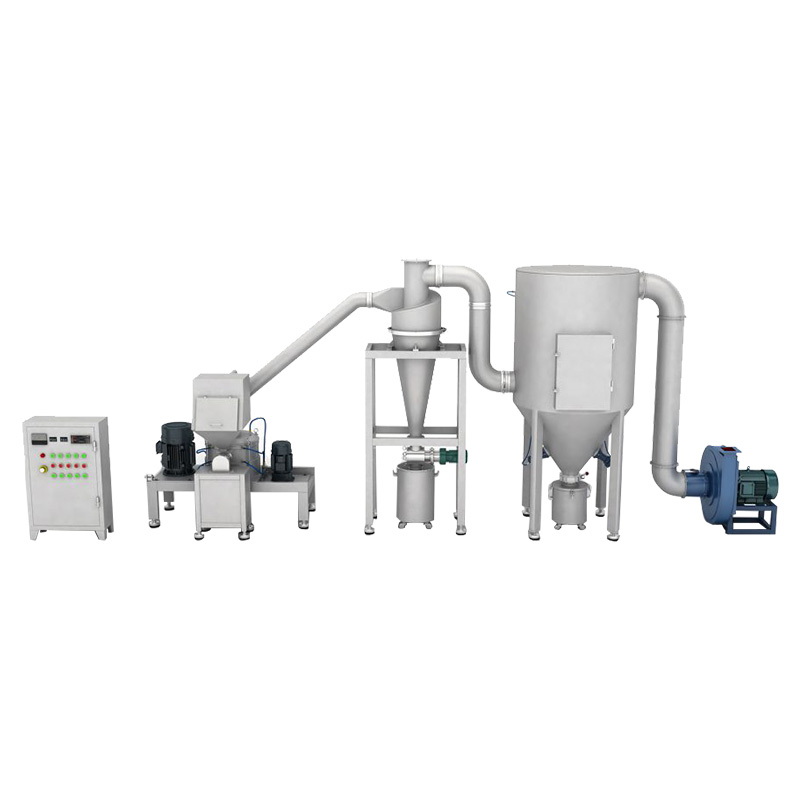

WFJ Series Dust Collecting Fine Crushing Set

Crusher Machine

Description Main Application:Comprised of main frame, auxiliary machine and electrical control cabinet, this machine has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level, thus being widely used for material crushing in pharmaceutical, chemical and foodstuff trades etc.. Working principle:The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharg...

B Series Dust Collecting Crusher

Crusher Machine

Description Main Application:Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole. Working principle:By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standar...

GFSJ Series High Efficient Crusher

Crusher Machine

Description Main Application:This machine is widely used in such trades as pharmaceutical, foodstuff and chemical etc. Working principle:This machine is high speed running equipment, in which, material is crushed by cutting of high speed blade which is of a sharp edge on one side and an impact blade on the other side. Blades of different sizes and shapes are available for choice according to different materials, and the particle size can be obtained through replacement of screen or adjustment of speed. Feature This machine is simple in structure, easy to assemble and clean the crushing ch...

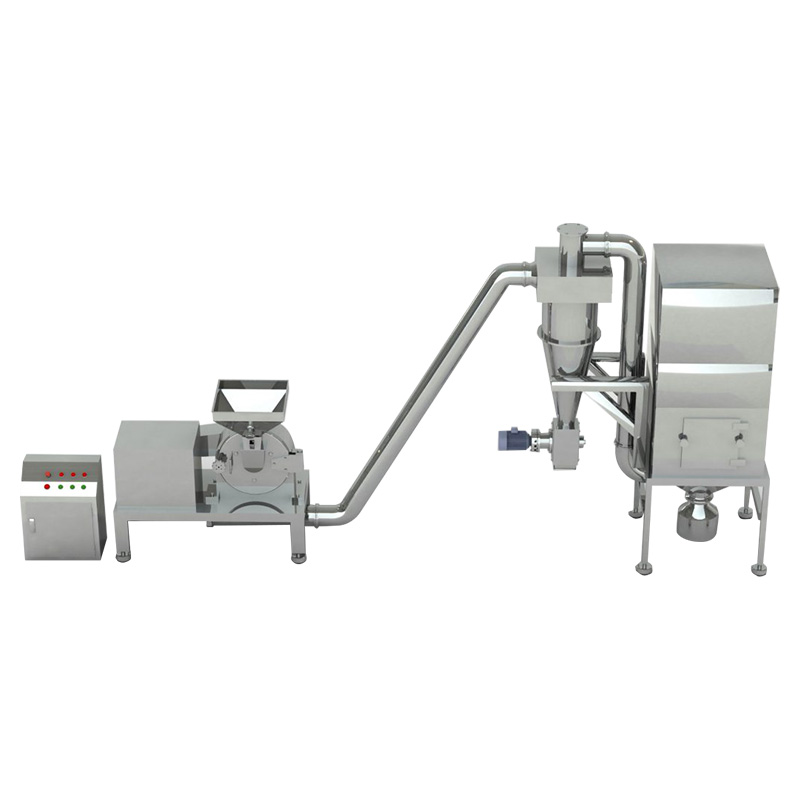

Model WF Series Cyclone Pulse Dust-collecting Fine Pulverizer

Crusher Machine

Description Main Application:This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust collecting and continuous discharge into a unit. Working principle:This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and induced fan etc., Material is fed into chamber through the hopper, and crushed by high speed rotating hammers. The crushed material flows into the cyclone separator by the induced fan and rotating centrifugal force, then discharge through ...
