UBM-1520 Round bottle labeling machine
| Model |
UBM-1520 |
|
Voltage specification: |
AC220V 50/60HZ single phase |
|
Power consumption rate: |
0.75KW |
|
Labeling speed: |
0-200 bottles/min (according to the length of the label) |
|
Labeling accuracy: |
plus or minus 1mm (except for bottle and label errors) |
|
Applicable container range: |
outer diameter 10-100mm, height 20-260mm (special specifications are customized according to specific requirements) |
|
Applicable label range: |
height 18-160mm, length 20-300mm (special specifications are customized according to specific requirements) |
|
Maximum label supply: |
350mm diameter, 76mm inner diameter of paper roll |
| Self-adhesive label parameters: |
Backing paper: 62 grams of white glassine backing paper should be selected. The paper is dense and has good internal strength and light transmittance. It is firm and not easy to be torn. Excellent die-cutting performance. |
|
Basic weight: |
62g/©O±5% Thickness: 55¦Ìm±5% |
|
Tensile strength: |
Machine direction: 16kg/25mm Lateral direction: 7kg/25mm |
| Tearing resistance: |
Machine direction: 25g/sheet, transverse direction: 31g/sheet |
|
Transparency: |
52% Label spacing: 3-4mm±0.2mm The distance between the upper and lower edges of the label and the upper and lower edges of the bottom paper: 2mm |
|
Work flow: |
Separate bottle ¡ú convey ¡ú label ¡ú finished product |
Performance characteristics:
|
1. This equipment is used for labeling round bottles or cylindrical objects. 2. Powered synchronous tension control supply labels, stable and fast supply, ensuring label delivery speed and labeling accuracy. 3. The bottle separation mechanism uses synchronous sponge wheel stepless speed regulation, and the bottle separation distance can be set arbitrarily. 4. Label synchronous positioning mechanism, label positioning error is plus or minus 1mm. 5. Manual man-machine interface, simple operation, anyone can easily operate this equipment quickly. 6. Multi-point emergency stop buttons can be installed in appropriate positions on the production line to ensure safe connection operation and smooth production. 7. The label peeling distance can be adjusted arbitrarily, suitable for labels of different lengths and debugging, and easy to use. |
|
Control System
|
The labeling host adopts a 5-phase stepping system. 2-phase, 5-phase and micro-stepping systems are mainly due to the different resolutions displayed by the driver. The 2-phase stepping system motor can be divided into 400 divisions per revolution, and the five-phase stepping system motor can be divided into the smallest division per revolution. It is 1000 divisions, the best performance is micro-stepping, the acceleration and deceleration time is shorter, and the dynamic inertia is lower. It is suitable for driving the labeling machine and has high precision. |

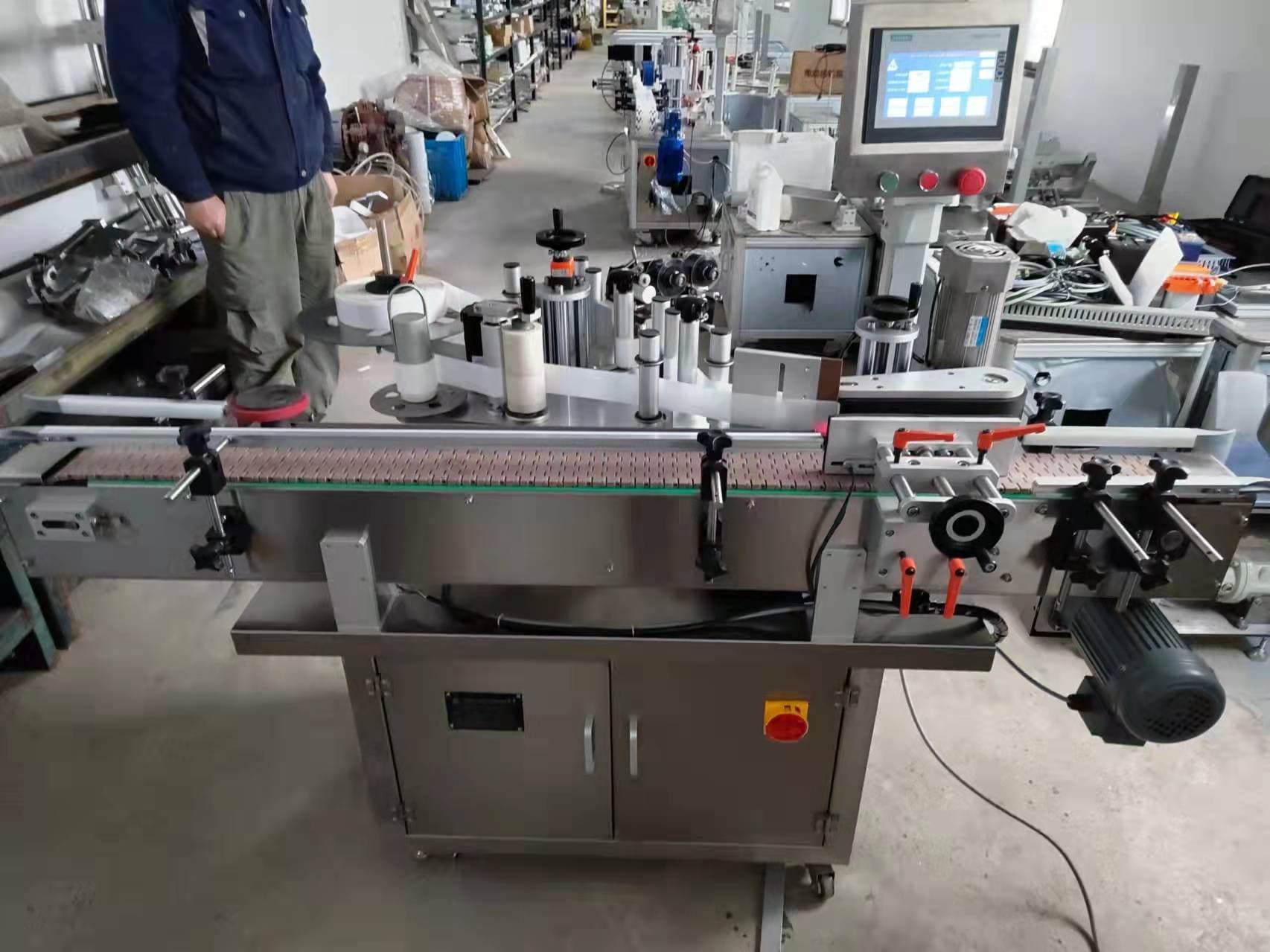

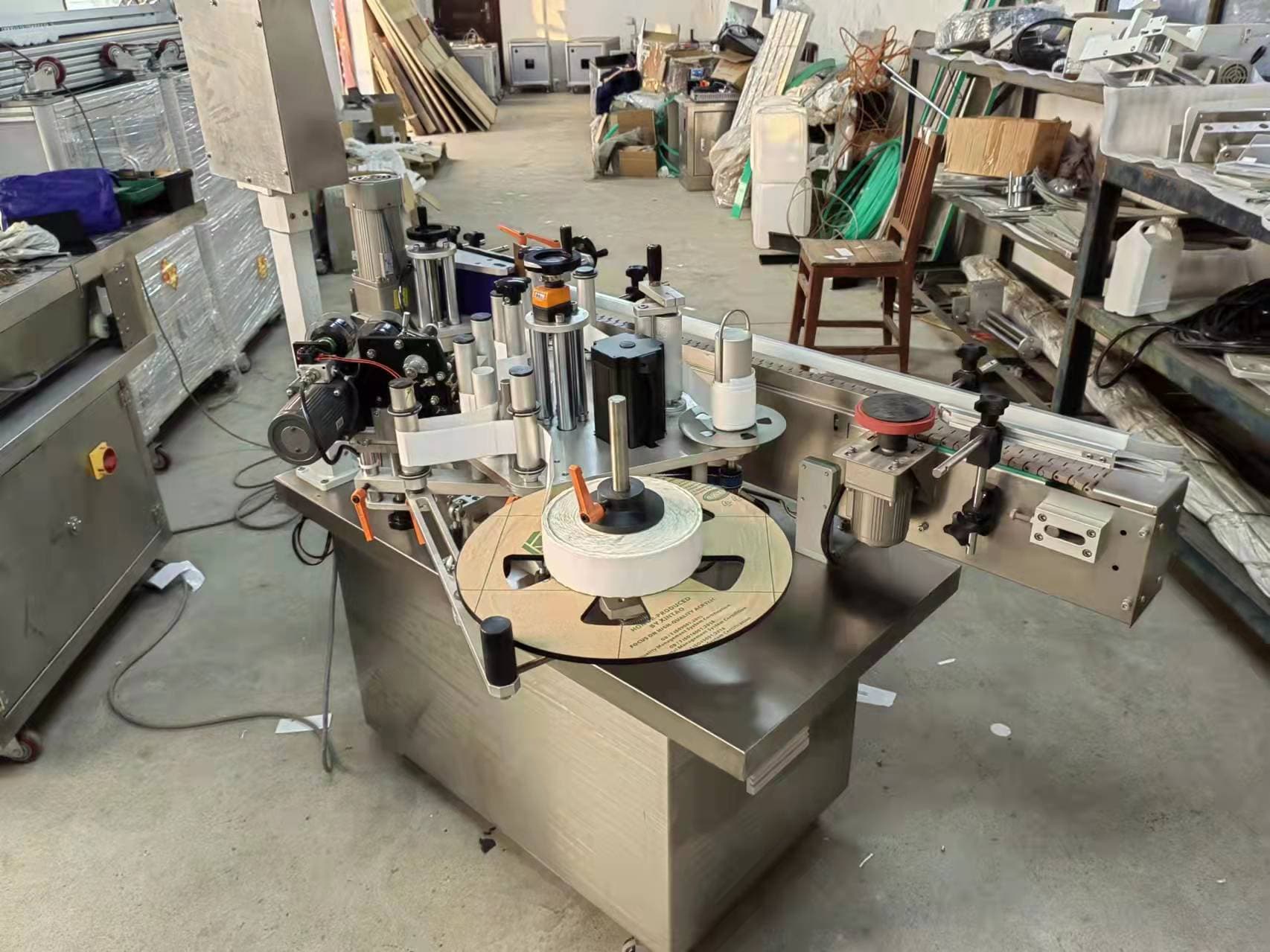

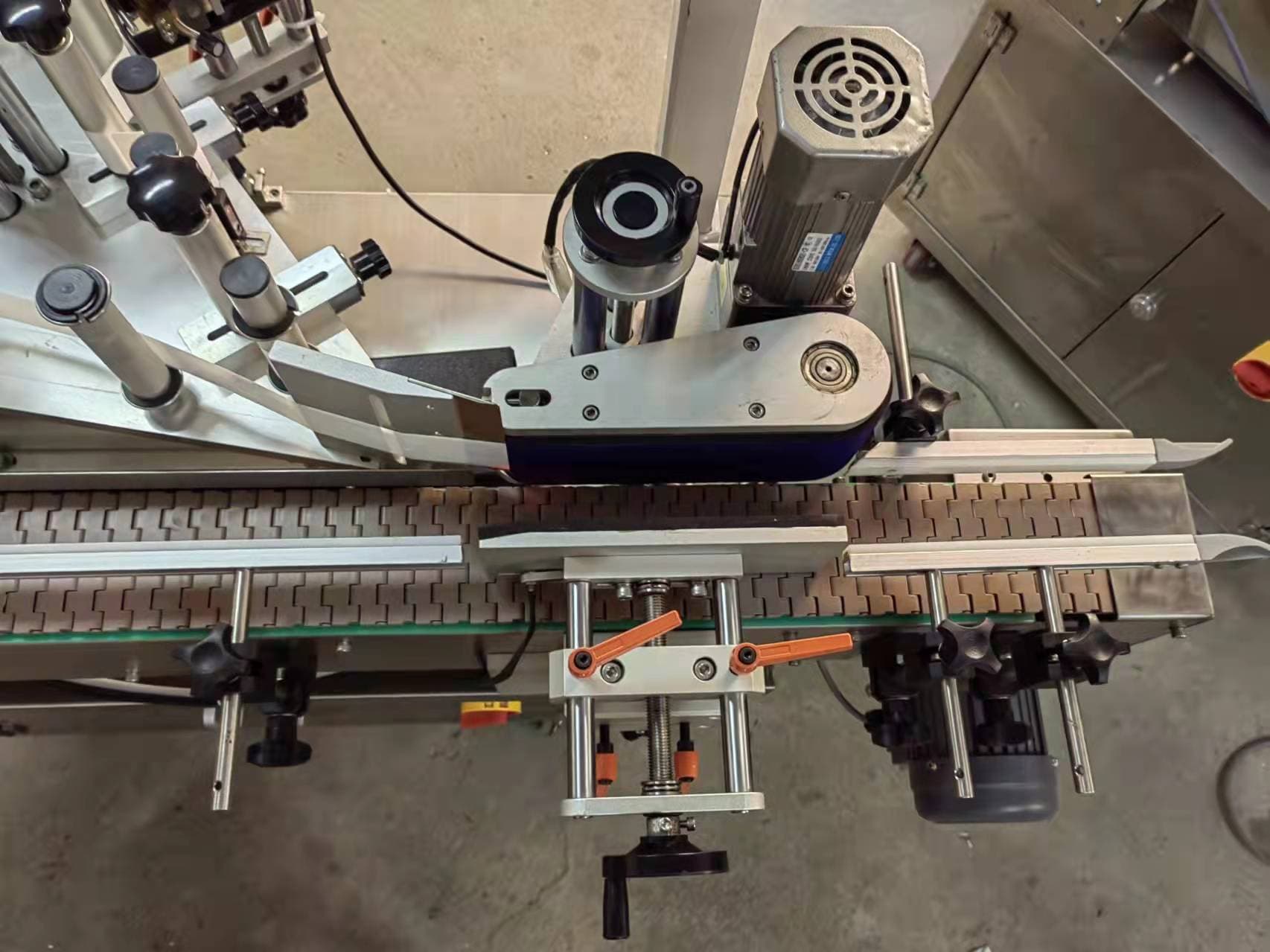

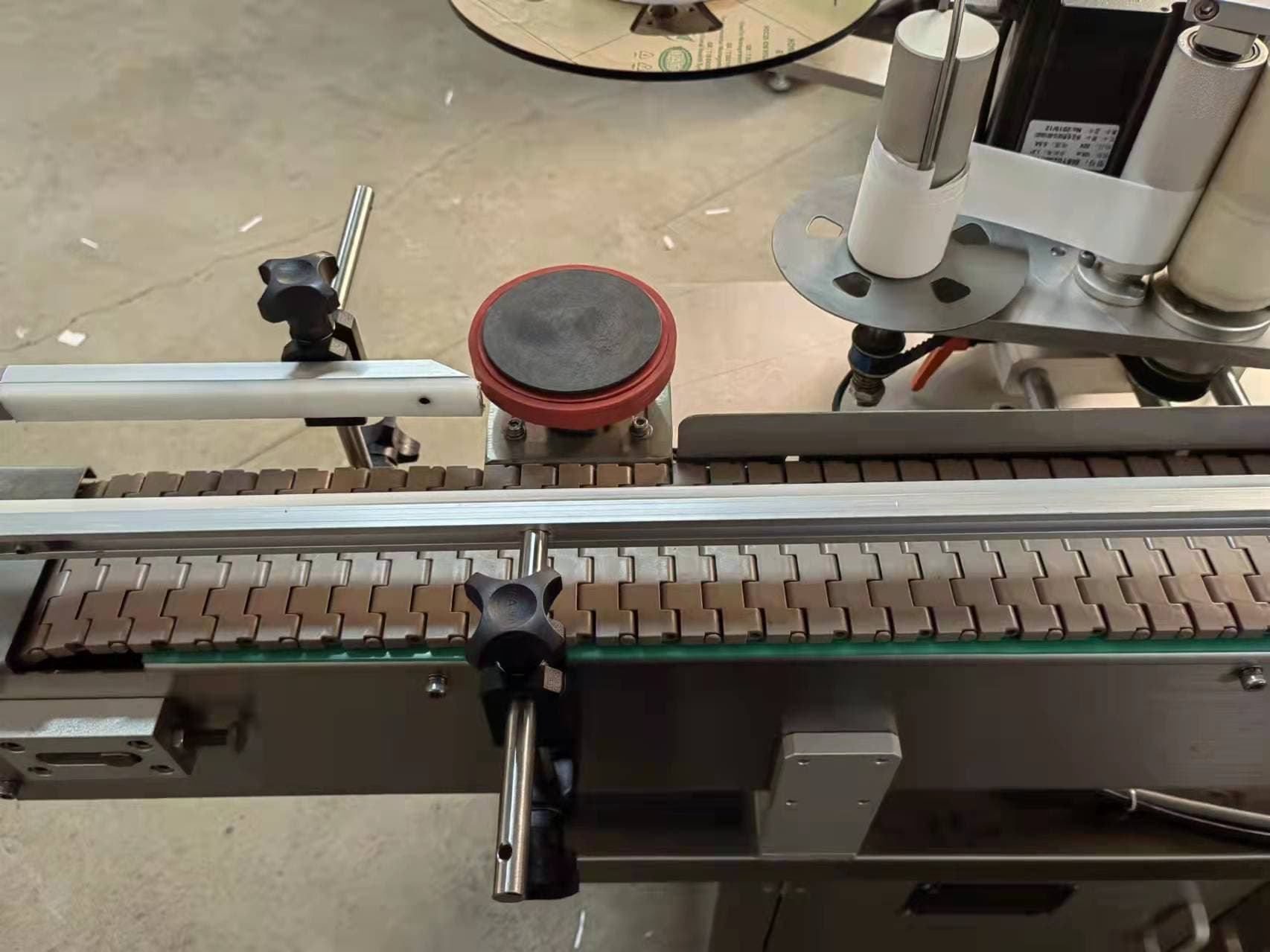

Machine Layout
Remark: The products are continuously upgraded, and the appearance refers to the real object.

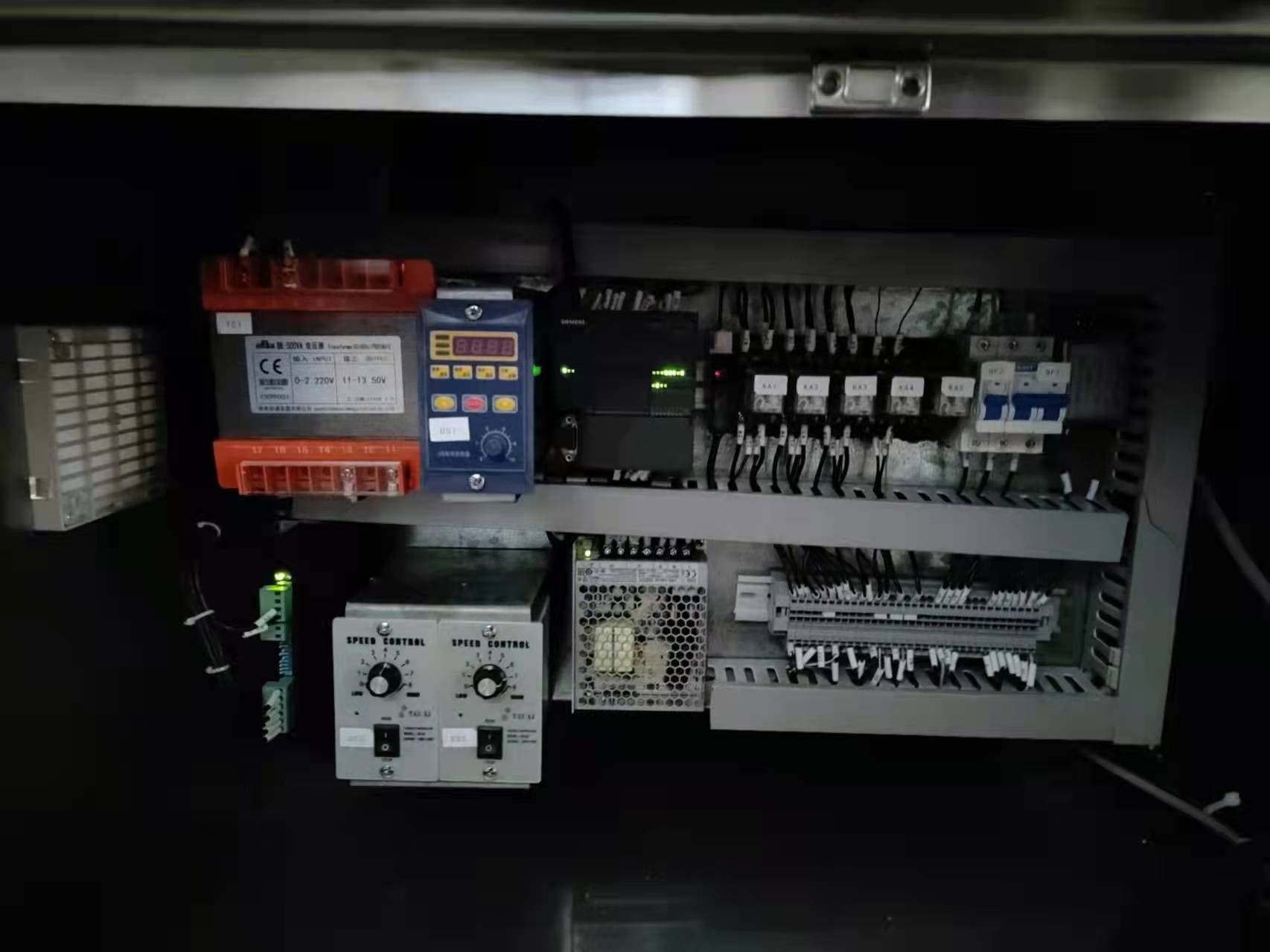

Electrical Parts
|
No |
Name | Factory |
Model |
QTY |
Remark |
| 1 |
Stepper motor |
Huanda |
86BYG250H156 |
1 | |
| 2 | Drive |
Huanda |
86BYG860 | 1 | |
| 3 | PLC | Siemens | SMART/ST20 | 1 | |
| 4 |

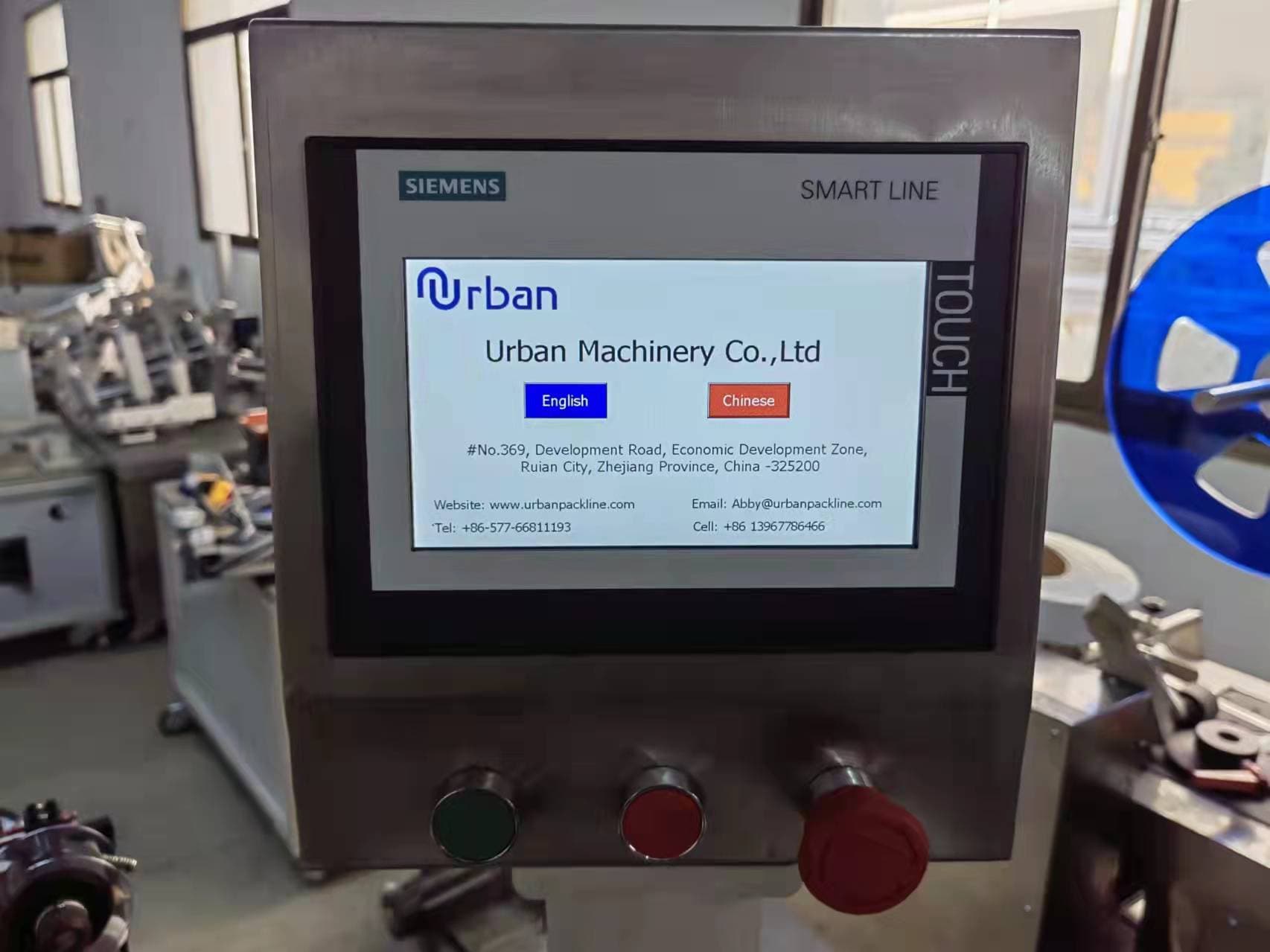

Touch screen |
Siemens | CGMS/7062 | 1 | |
| 5 |
Transformer |
Zhuo Nai |
JBK3-100VA |
1 | |
| 6 |
Bottle inspection sensor |
Korea Autonics |
BF3RX/12-24VDC | 1 | |
| 7 | Inspection sensor |
Korea Autonics |
BF3RX/12-24VD |
1 | |
| 8 |
Coding machine |
Shanghai |
HD-300 |
1 | Option |
| 9 | Conveying motor |
Taili |
CV10-200W |
1 | |
| 10 |
Press standard motor |
Taili |
CV10-120W |
1 | |
| 11 |
Separating motor |
Taili |
CV15-40W |
1 | |
| 12 | Power supply |
MEAN WELL |
S-75-24 |
1 | |
| 13 |
Stainless steel |
SUS | |||
| 14 | Aluminum |
L2 |
