Multihead Weigher Rotary Packing Machine
Qualipak Mulyihead weighter rotary packing machine consists to the bag automatic packaging machines,intelligent combination weighter,bucket elevator,working platforms,support form,mainly applicable to a variety of granular,bar/irregular lump materials,such as puffed food,snack food,raisins,red dates,melon seeds,almonds,pine nuts,candy,jelly,frozen ...
Description
Dosing system

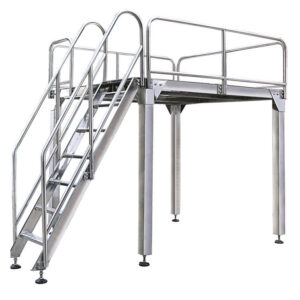

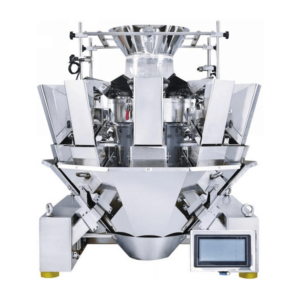

1. Multihead Weigher 2. Z Conveyer 3. Working Platform
Qualipak Mulyihead weighter rotary packing machine consists to the bag automatic packaging machines,intelligent combination weighter,bucket elevator,working platforms,support form,mainly applicable to a variety of granular,bar/irregular lump materials,such as puffed food,snack food,raisins,red dates,melon seeds,almonds,pine nuts,candy,jelly,frozen food,pet food and other materials aoto complete feeding,take the bag,play yards,open the bag,quantitative,filling,sealing,output of finished packaging.
- Model: RL8-200; Pouch width: 80-200mm; Pouch Height: ¡Ü350mm; Speed: 20-60pouches/min;
- Model: RL8-250; Pouch width: 140-260mm; Pouch Height: ¡Ü350mm; Speed: 20-50pouches/min;
- Model: RL8-300; Pouch width: 200-310mm; Pouch Height: ¡Ü450mm; Speed: 20-40pouches/min;
Feature
- Easy to operate, SIEMENS PLC and Touch Screen control system.
- Stainless steel housing, parts in contact with the product and bags comply with GMP requirements, guarantee hygiene and food safety.
- Includes Japanese Dry Type vacuum pump for an ideal vacuum suction of the pouch pick up and opening, reliable, low noise and low maintenance.
- Automatic control: non-filled /not sealed/no pouch or in case of pouch opening errors, the pouch can be used again.
- Easy changeover for different pouch sizes. The gripper width can be adjusted automatically from the touch screen panel.
- Wide range of usable packing materials, suitable for multi-layer compound, Aluminum foil, laminating film, Paper laminating film etc.
Data Sheet
| Model | QLPRL200-G | QLPRL260-G | QLPRL320-G | ||
| Pouch pattern | Laminated film PP/PE Foil | ||||
| Bag Size | W:80~200mm
L：≤100-350mm |
W:140~260mm
L：≤350/450mm |
W:180~320mm
L：≤450mm |
||
| Filling Scope | 10-1500g | 10-1500g | 10-1500g | ||
| Packing Speed | 10~70bags/min | 10~55bags/min | 10~45bags/min | ||
| Total Power | 5KW | ||||
| Voltage | 380v 3phase 50Hz | ||||
| Weight Accuracy | ≤±1% | ≤±1% | ≤±1% | ||
| Compressed Air Consumption | 0.6m3/min（Compressed air provided by the user）
Compressed Air Consumption） |
||||
