NJP-1200 Automatic Capsule Filling Machine,High precision,Touch Screen
2.The fully endosed patented technical rotary table has a one-way movement and good sealing performance for the upper and lower moulds, which solves the problems of mold removal and assembly difiulty....
Introduction
| 1.NJP1200 is a device that is suitable for small and medium scope production. 2.The fully endosed patented technical rotary table has a one-way movement and good sealing performance for the upper and lower moulds, which solves the problems of mold removal and assembly difiulty. 3.The equipment adopts imported high precision cam, which has stable operation, high indexing precision, compact structure and low noise. 4.The operation electronic control system adopts PLC control. The main electrical components are selected from intermational famous brands such as (SIEMENS, OMRON, SCHNEIDER), etc, and the performance is safe and reliable. 5.It has two functions for material fling: timing, quantitative and capacitive sensing. 6.Adopting the disc type metering device, three-dimensional adjustment, uniform gap£¬ reducing the phenomenon of powder leakage, and automatic vacuum dleaning function. 7.It has a double feeding function and unique design principle for mixed fling of different drugs together such as (powder, granule, pellet, tablet). |
Specifications
| Model | NJP-1200C |
| Productivity |
72000 capsules/h |
| Applicable capsules |
00#, 0#, 1#, 2#, 3# ,4#, 5# machine-made standard capsules |
| Filled medicine type |
Not adhesive or wet powders and small granules |
| Total power | 5.5Kw |
| Number of holes | 9 |
| Vacuum |
40m3/h -0.04-0.08Mpa |
| Aspiration |
24.5Kpa 210m3/h |
| Compressed air |
4m3/h 0.3-0.4Mpa |
| Working noise |
£¼75DB(A) |
| Load precision |
±3% |
| Dimensions(mm) |
1100X910X2100 (LXWXH) |
| Weight |
1100KG |
Application
|
|
|
|
| The machine is suitable for liquid, medicine, beverage, health product, food, perfume, pesticide, cosmetics, electronic cigarette oil, etc | ||
Machine Detail
|

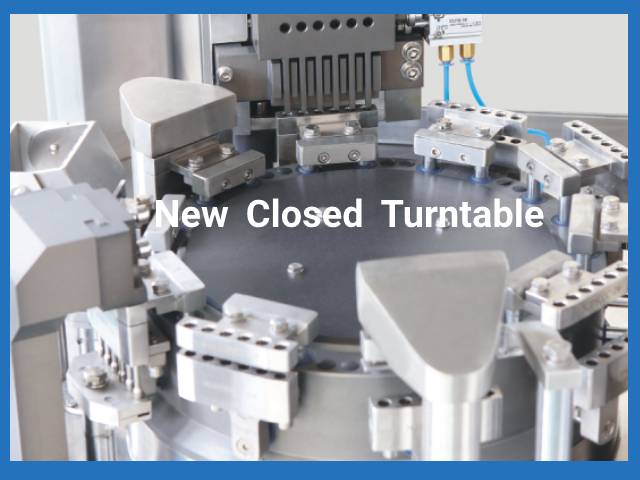

New Closed Turntable |

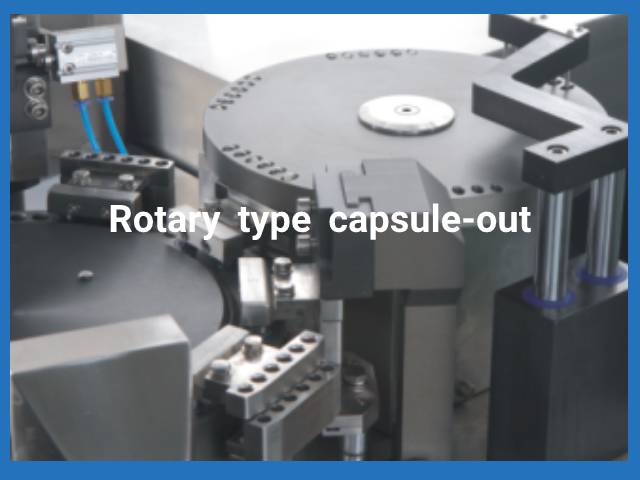

Rotary type capsule-out |
|

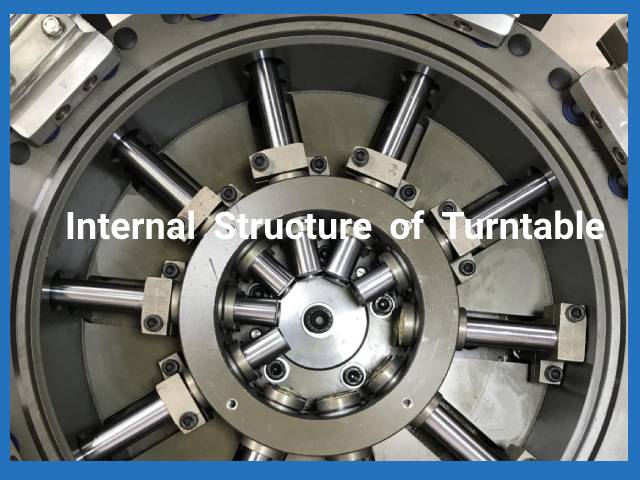

Internal Structure of Turntable |
New Closed Turntable |
Our Service
-
Through years of experience, Qualipak provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
-
We can supply m§Ñsk raw materials for you if you can’t buy materials from in your local market.
-
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
-
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
-
1. The whole machine is guaranteed for 1 years.
-
2. Provide professional machine operation and maintenance guidelines.
-
4. Provide 24-hour online professional technical services .
