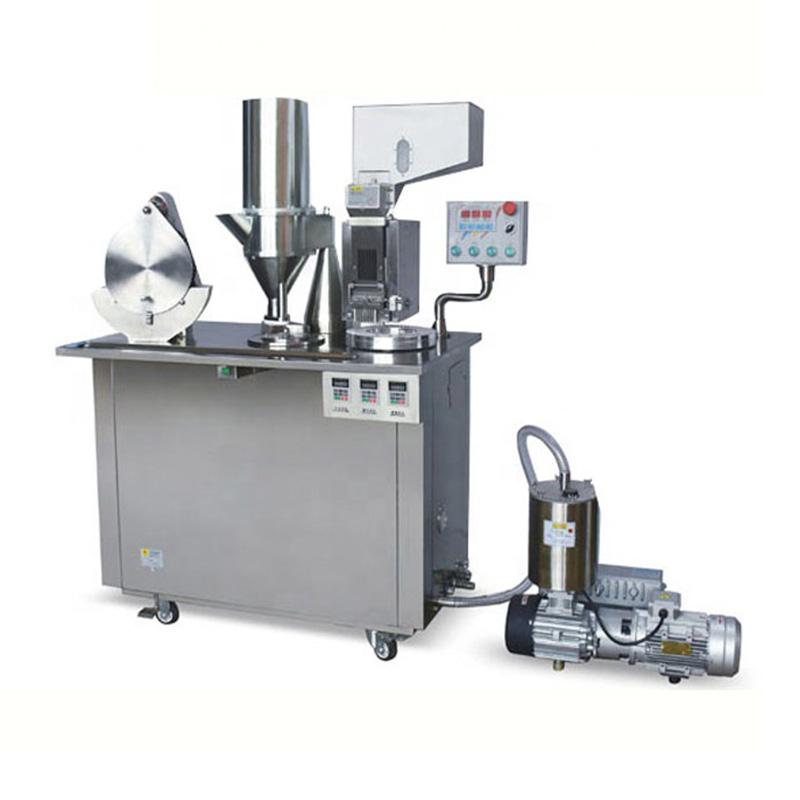

CGN-208D Semi Automatic Capsule Filling Machine
GMP Standard CGN-208D semi automatic capsule filling machine can be used for filling 000#, 00#, 0#, 1#, 2#, 3#, 4# and 5# standard capsules. The structure is novel, the structure of the capsule locking is improved, saves labor, improves work efficiency....
Description
GMP Standard CGN-208D semi automatic capsule filling machine can be used for filling 000#, 00#, 0#, 1#, 2#, 3#, 4# and 5# standard capsules. The structure is novel, the structure of the capsule locking is improved, saves labor, improves work efficiency. This semi auto capsule filling machine is the preferred product for many pharmaceutical manufacturers, health care products manufacturers, hospitals, mass production or laboratories.
Feature
- Matching different size formats to fill 000#~4#capsule.
- One size capsule matched one set format.
- It can finish the whole filling capsule process, adjusted the capsule of cap and bottom, open the cap and bottom, filling powder, get rid of unqualified capsules, close the capsule, finished capsule.
- Satisfied GMP standard, the powder will not be pollution, save powder materials than semi automatic capsule filling machine. Easy to be clean;capsule filling machine 000.
- Low wear and tear. The structure is new, improved design.
- Can filling all kinds of Chinese and foreign medicine powder, and granules.
- Frequency control, the operation is safety and simply.
Data Sheet
|
Model
|
CGN208-D
|
|
Productivity
|
20,000-25,000 capsules/h
|
|
Applicable capsules
|
#000/00/0/1/2/3/4/5
|
|
Filled medicine type
|
Not adhensive or wet powders, and small granules
|
|
Total power
|
4.0KW
|
|
Air pressure
|
0.03m 3 /min, 0.7MPa
|
|
Vacuum pump
|
Evacuating rate, 40m 3 /h
|
|
Dimension(L*W*H)
|
1500*780*1800mm
|
|
Weight
|
380KG
|
|
Warranty
|
1 year
|
