NJP-3800 Automatic Capsule Filling Machine,New filling mechanism,Touch Screen
Introduction
| 1.NJP-3800 has a fully endosed ten-station rotary table, The filling mould adopts double-row 27-hole dislocation arrangement design, which is compact, light in weight and stable in operation. 2. the powder structure can make the powder flow smoothly, the high- speed fillling accurate, and the difference loading is better than the national standard. 3. the machine has a smart remote control, in the equipment maintenance mold removal, hand-held remote control, jog, test machine, easy to operate, to ensure operation safety. 4. The capsule ejection device without the air, efectively avoiding the pinch and dust flying when the finished product is out. 5. When the machine has a lack of material, lack of capsules, gated automatic alarm shutdown system, can achieve electronic signature printing, industrial Ethernet connection function. 6. The machine can be equipped with automatic vacuum feeding, vacuum capsule loading, which can be controlled by touch screen. |
Specifications
| Model | NJP-3800C |
| Productivity |
228000 capsules/h |
| Applicable capsules |
00#, 0#, 1#, 2#, 3# ,4#, 5# machine-made standard capsules |
| Filled medicine type |
Not adhesive or wet powders and small granules |
| Total power | 10.5Kw |
| Number of holes | 27 |
| Vacuum |
63m3/h -0.04-0.08Mpa |
| Aspiration |
24.5Kpa 210m3/h |
| Compressed air |
6m3/h 0.3-0.4Mpa |
| Working noise |
£¼75DB(A) |
| Load precision |
±3% |
| Dimensions(mm) |
1500X1200X2200 (LXWXH) |
| Weight |
2200KG |
Application
|
|
|
|
| The machine is suitable for liquid, medicine, beverage, health product, food, perfume, pesticide, cosmetics, electronic cigarette oil, etc | ||
Machine Detail
|

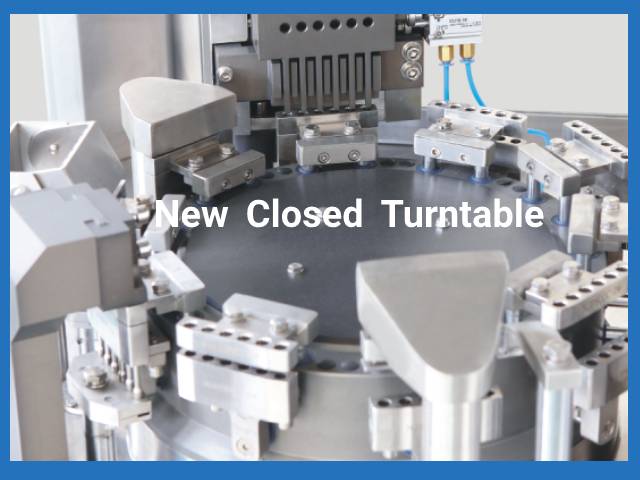

New Closed Turntable |

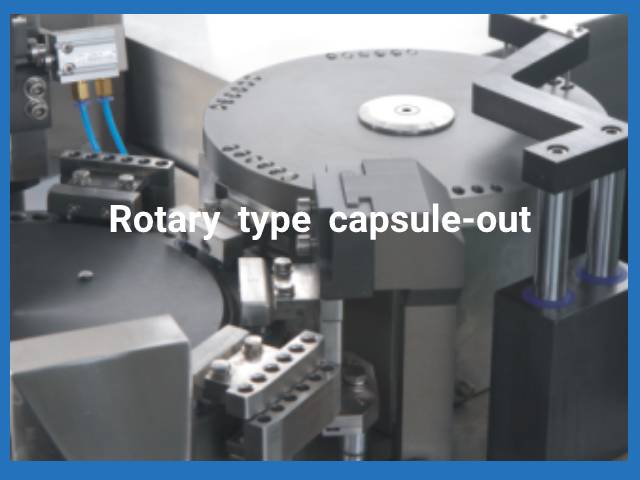

Rotary type capsule-out |
|

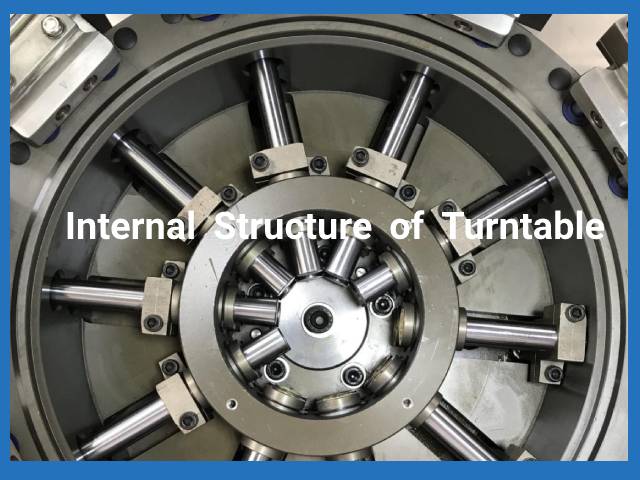

Internal Structure of Turntable |
New Closed Turntable |
Our Service
-
Through years of experience, Qualipak provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service, and multiple client solutions.
-
We can supply m§Ñsk raw materials for you if you can’t buy materials from in your local market.
-
We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
-
We have a professional international technical team. To provide you with after-sales service and guidance.
After-sale Service
We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.
-
1. The whole machine is guaranteed for 1 years.
-
2. Provide professional machine operation and maintenance guidelines.
-
4. Provide 24-hour online professional technical services .
