NJP-5500 Automatic Capsule Filling Machine,High Production,Touch Screen
2. The equipment is fully enclosed, with 12 workers' rotary table and three rows of 43 holes arranged in the filling module;...
Introduction
| 1. NJP-5500C is the equipment with the highest output in China; 2. The equipment is fully enclosed, with 12 workers’ rotary table and three rows of 43 holes arranged in the filling module; 3. The whole machine is equipped with the automatic stop system of gate control and alarm, which can realize the function of electronic signature printing and industrial Ethernet connection; 4. The lower module has one-way movement with two shafts, and the imported polyurethane sealing ring prevents dust from entering the rotary plate; 5. The main engine is equipped with ineligent remote control, inching, test, easy to operate, to ensure personnel safety; 6. Automatic vacuum feeding and vacuum capsule can be installed, and the control system is operated by touch screen. |
Specifications
| Model | NJP-5500C |
| Productivity |
330000 capsules/h |
| Applicable capsules |
00#, 0#, 1#, 2#, 3# ,4#, 5# machine-made standard capsules |
| Filled medicine type |
Not adhesive or wet powders and small granules |
| Total power | 11Kw |
| Power supply |
380V 50Hz |
| Number of holes | 43 |
| Vacuum |
-0.02-0.06Mpa |
|
Compressed air £¨Module cleaning£© |
12m3/h 0.3-0.4Mpa |
| Working noise |
£¼75DB(A) |
| Load precision |
±3% |
| Dimensions(mm) |
1500X1250X2200 (LXWXH) |
| Weight |
3000KG |
Application
|
|
|
|
| The machine is suitable for liquid, medicine, beverage, health product, food, perfume, pesticide, cosmetics, electronic cigarette oil, etc | ||
Machine Detail
|

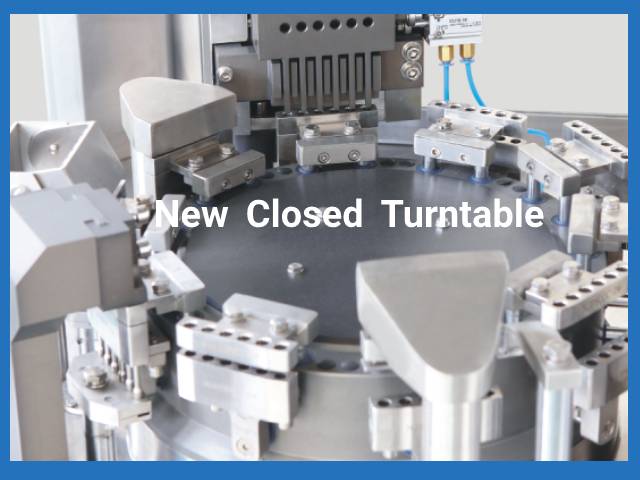

New Closed Turntable |
Rotary type capsule-out |
|
Internal Structure of Turntable |
New Closed Turntable |
