Good Selling Low Price Automatic LFP-150A Capsule Polisher

Good Selling Low Price Automatic LFP-150A Capsule Polisher

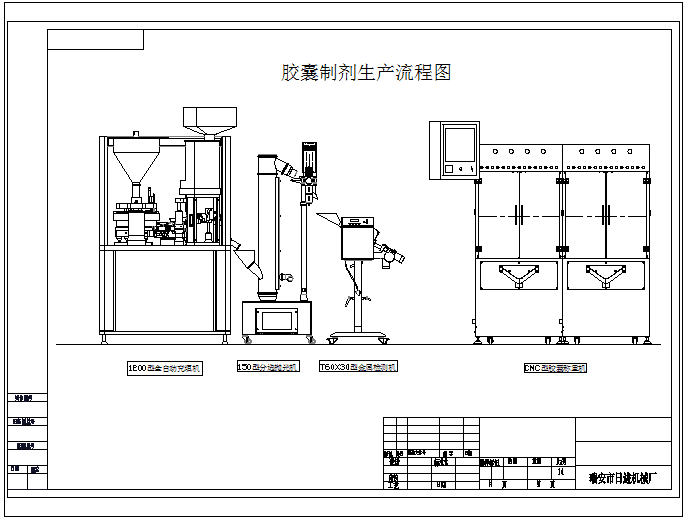

Capsule Polisher has achieved double functions of capsule polishing and elevating. Inlet of the machine can be connected with any model of capsule filling machine, and outlet with capsule sorter and metal detector, so that to realize the production line of capsule polishing, elevating, sorting and detecting....

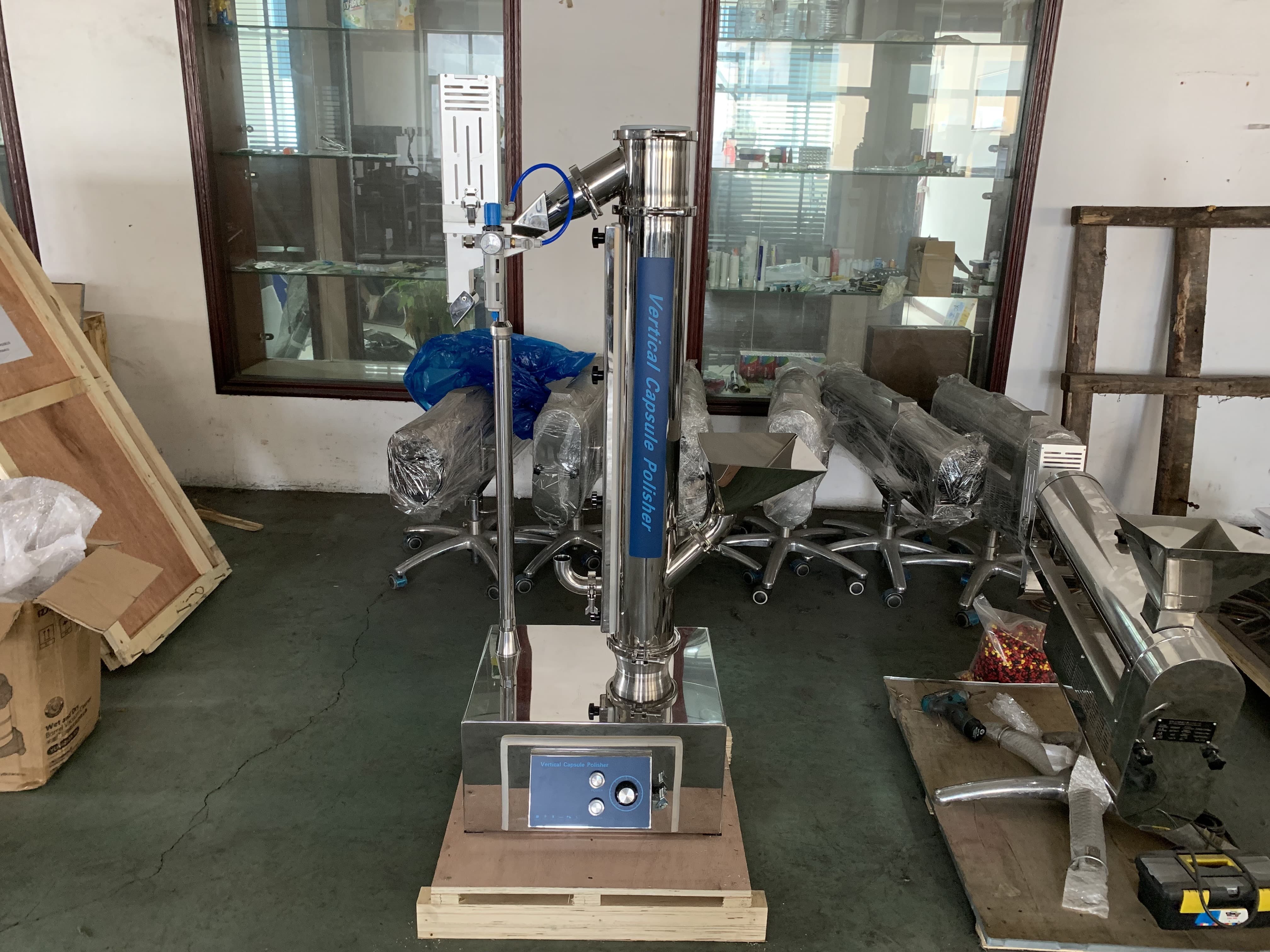

Capsule Polisher

Designed with up-to-date concepts and adopting several advanced technologies, the machine is equipped

with following characteristics:

1.Double functions of capsule polishing and elevating to leave high flexibility for follow-up equipment line;

2.360° circle adjustment for inlet and outlet to make production more convenient and save factory room;

3.Automatically sort less dosage, empty, fractured and cap-body separated capsule;

4.Fast-joint system to ensure safe and quick disassembly and assembly;

5.Parts in contact with medicine all made of 316L stainless steel or other material conforms to modern medicine safety standards;

6.Detachable brush on main shaft can be thoroughly cleaned. No blind spot during whole machine cleaning. Meet cGMP demands.

Product Specifications


MODEL

LFP-150A

Applicable capsule model

00#  0#  1#  2#  3#  4#

Maximum productivity (grain/hour)

450000

Entry height (mm)

730

Exit height (mm)

1100

The power indicator

1PH  220V/110V    50 Hz/60Hz  0.20kw

The compressed air

0.3m3/min   0.3Mpa

Vacuum aspiration

3.0 m3/min  -0.014Mpa

Dimensions (mm)

740 x 510 x 1500

Packaging dimension

680x660x1550

Net weight (kg)

80

Gross weight (kg)

130

Configuration list

Name Model  Brand  Quantity
Motor

100YS200GY22

Xiamen Jingyan 1
Start up button

2B2-BE101C

Schneider 2
Inverter

SIEMENS V20

Siemens 1
Governor

WTH116-1A

Schneider 1
Filter

LFR-1/4-D-MN-MA

Festo 1



Product Details


Our Service

  • Through years of experience, Qualipak provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply m§Ñsk raw materials for you if you can’t buy materials from in your local market.

  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.

  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .

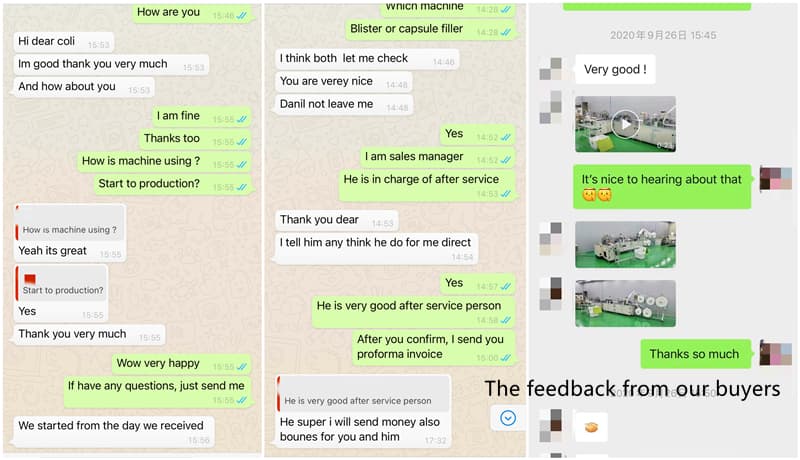

Customer Feedback
