High Speed Automatic Pharma Automatic Blister Cartoning Machine | Overwrapper Packing Machine | Cartoner

High Speed Automatic Pharma Automatic Blister Cartoning Machine | Overwrapper Packing Machine | Cartoner

The automatic horizontal cartoning machine is a high-tech product integrating light, electricity, gas and machine. As a result, the equipment performance and work efficiency have been greatly improved, the requirement of fast boxing is realized, and the stable and reliable state is still maintained during fast operation....

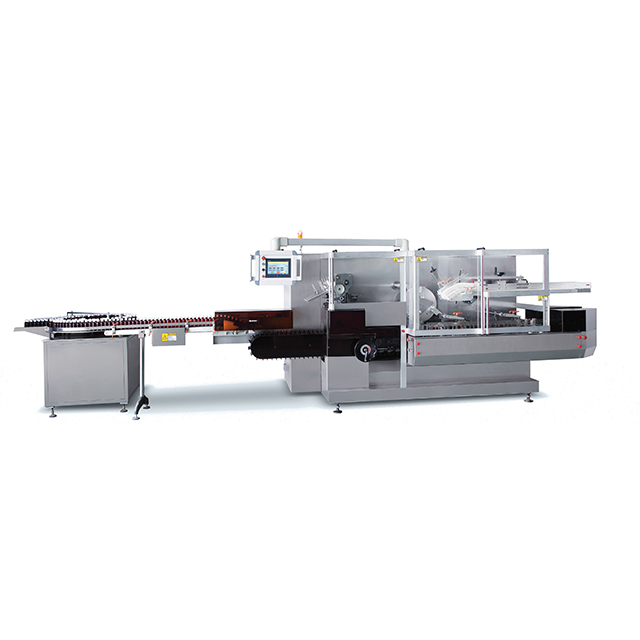

Introduction

   This machine is used to take Alu/PVC medical plate or plastic bottle (vitreous bottle) to flling in paper box automatically. It can perform automatically the whole process of folding and conveying of leaflet, paper box forming, batch number printing and box sealing. The machine can also be linked to work with Alu/PVC packing machine,bottle flling machine and transparent film three dimensional packing machine.

Application:
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2.Adopt human-machine operation system.
3.Automatically stop when machine is overload.
4.Automatically reject lacking of package product and leaflet.
5.Automatically display trouble, Alarm and count finished products.
6.Stable performance,operation is easy.


Specifications

Model    ZHJ-300
Cartoning Productivity

   150-300 boxs/min Base on carton size

Box Quality requirements

300-350g/m2

Dimension range£¨L*W*H£©

(75-210)X(33-85)X(16-65)mm

Leaflet Quality requirements     65-75g/m2
Dimension range£¨L*W*H£©     (100-260)X(100-190)mm
Compressed air Working pressure

0.6-0.8Mpa

Air Compresse

260L/min

Power supply    380V 50Hz
Motor Power    5KW
Dimensions(LXWXH)

3900X1700X1750 mm

Weight

2500KG

Our Service

  • Through years of experience, Qualipak provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.


  • We can supply m§Ñsk raw materials for you if you can’t buy materials from in your local market.

  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.

  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .
