Professional Automatic UNM-32SX Capsule And Tablet Counting Line

Professional Automatic UNM-32SX Capsule And Tablet Counting Line

Capsule And Tablet Counting Line is used for counting and filling capsules in poly bags and rigid containers. This line is the most complete, affordable, and innovative capsule and tablet counting line in the marketplace. We fully integrated this line to include from Turn Table, Automatic Electronic Counting Machine, Automatic Desiccant Inserting M...

Introduction

Item Basic Machines
1 UBM-650ZP Turn Table
2 UBM-32S Automatic Electronic Counting Machine
3 UBM-GS Automatic Desiccant Inserting Machine
4 UBM-CG Linear Bottle Capping Machine
5 UBM-LF Induction Sealing Machine
6 UBM-200YT Automatic Round Bottle Labeling Machine

Product Details

UBM-650ZP Turn Table

Frame

All Stainless Steel Construction to meet the GMP Standard

Specifications

Feeding disk speed less control system

Diameter of disk: option 600mm

Turning disk motor power: 200W

Variable Speed Control for motor

Capacity

Production Capacity: 60-120 bottles per min.

Production Capacity Speed can be adjusted.

Dimensions & Weight

Machine dimension (L x W x H): 1400 x 600x 1200mm

Main Machine weight:  100kg

Power Source

AC220V, 50Hz, 1 Phase

UBM-32S Automatic Electronic Counting Machine

SED-32 Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 32 sets imported counting sensor for counting with 32 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.
Main Technical Data:
Model Name UBM-32S
Application 1. Filled capsule(00-5#)

2. Soft Gelatin capsule

3. Ф3-22mm tablet

4. Ф3-20mm pills

other solid object under machine range

Hopper Volume 60L
Capacity 20-100 bottles/min
Filling Quantity 2-9999pcs/bottle (adjustable)
Compressed air 0.6Mpa 5L/min
Power 220V/50HZ   1.3KW
Machine Weight 550kg
Machine Size L × W × H (mm) 2000 × 1300 × 1700
Configuration:
Name Manufacturer
Electric machinery Maili Electric
Photoelectric sensor Germany Sick
Counting photoelectric system SED
Pneumatic components Airtec International Group
Leakage protection CHINT China
Switch button Taiwan MeanWell
Human interface Siemens

Product Picture

Photoelectric eye will judge whether there is bottle at the feeding mouth (it does not work without bottle)

The material moves orderly to the medicine chamber through the vibration of the corrugated plate

Touch screen control

UBM-GS Automatic Desiccant Inserting Machine

Tablet and capsule are easy to go moist, so it is necessary to put the desiccant into the container to keep medicine away from moisture in order to improve reliability of guarantee period. The machine applies automatic controlling system to take the place of the previous manual operation. The machine can automatically cut the belted desiccant and insert the desiccant bag into the container accurately and speedily. It is available for bottles and pots made of different materials. It features double-lane photoelectric positioning, intelligent feeding length controlling and automatic adjustment of accumulated length error. The electronic controlling system ensures the machine starts when bottles reach working position and stops when bottles are insufficient automatically. The product conforms to the requirements of GMP completely.
Main Technical Data:
Bottle Size 20-300ml
Output 40-100bottles/min
Power Supply 220V 60Hz
Power 0.85Kw
Overall Dimensions 1150*800*1900mm
Configuration:
Name Manufacturer
Electric machinery Maili Electric
Photoelectric sensor Germany Sick
Pneumatic components Airtec International Group
Leakage protection CHINT China
Switch button Taiwan MeanWell
Human interface Siemens

Product Picture

UBM-CG Linear Bottle Capping Machine

The machine adopts three groups of friction rollers to screw caps. Screwed caps are not easily damaged by the screwing unit. And if caps are not screwed tightly or tilted, they will be found and rejected automatically. The screw capper is available for various bottles and its changeover is fast and easy. The machine overthrows conventional means of arranging cap by electromagnetic oscillation but arranges caps pneumatically to avoid noise pollution and reduce electric power consumption. It also provides international brand PLC controls, variable frequency controls and photoelectric controls. The machine is incorporated with the device of arranging and lifting cap and a big capacity of cap hopper, so less cap feeding times reduces labor intensity. Generally operators can grasp fluently. The machine conforms to the requirements of GMP completely.
Feature:
  • Strong compatibility, suitable for various cap and bottle types;
  • A pair of cap-dropping and cap-wearing devices are suitable for bottle caps of various specifications;
  • The capping torque is controlled to ensure the quality of capping (optional);
  • Swing type screw capping wheel, the screwing force is more suitable, greatly reducing the wear of the capping wheel;
  • It has multiple inspection and alarm control functions such as no bottle, no cover, no work, crooked cover, reverse cover, no aluminum foil detection and rejection, fault self-check, etc., to ensure continuity and accuracy;

Fully automatic operation, intelligent joint control with upper and lower processes, good coordination, no need for special personnel to operate, saving labor;

Main Technical Data:
Size of bottles: 20-500 ml
Output: 50-150 bottles/min
Diameter of caps: φ20-65 mm
Diameter of bottles: φ20-120 mm
Power supply: 220V 60Hz
Power: 1.5KW
Overall dimensions: 2160*1050*1900 mm
Weight 650KG
Configuration£º
Name Manufacturer
Electric machinery Maili Electric
Photoelectric sensor Germany Sick
Pneumatic components Airtec International Group
Leakage protection CHINT China
Switch button Taiwan MeanWell
Human interface Siemens

Product Picture

The material drives the cap to rotate through the cap roller of the bottle clamping belt to tighten the cap

The cap system will place the cap on the bottle in an orderly way

UBM-LF Induction Sealing Machine

Application:

This machine is suitable for sealing plastic bottles and glass bottles of pesticides, medicines, foods, cosmetics, oils, etc.



Features:

1. The unique tunnel design of the sensor head, the sealing speed is fast, even the special-shaped bottle with sharp mouth and high cap can be sealed perfectly

2. The sensor head can be rotated (this function must be customized), suitable for the sealing of bottles of different sizes and calibers, one machine with multiple uses, saving costs

3. The height of the sensor head is adjustable, which can adapt to the sealing and packaging of containers of various heights

4. The induction head uses thickened copper pipes, which can be used with ordinary tap water, and the built-in water circulation system reduces costs

5. The sealing process is fast and effective, and the bottle mouth can be effectively sealed even if there is a small amount of water or residual liquid

6. The new module intelligent design, moisture-proof, anti-corrosion, dust-proof, anti-electromagnetic interference. Long service life, extremely low failure rate, simple maintenance

7. Unique alarm function, the water tank is short of water, the water temperature is too high, and it can automatically alarm when there is a fault

8. Stainless steel material, in line with GMP requirements

9. The host generator adopts the latest imported transistors and is controlled by a CPU module

10. All functional parts on the panel are clearly marked and easy to operate

11. Movable, convenient and flexible to use with the production line, integrated design of the host, easy to install and use.

12. The induction head and host of the same model can be interchanged and used, which effectively reduces the cost of use. Passed CE certification

Main Technical Data:
Model: SR-6000A
Suitable bottle diameter: 20mm-130mm (customizable)
Adjustable stroke of the sealing head (height from the ground): 1040mm-1430mm (customizable)
Can meet the line speed: 0-25m/min
Sealing speed: 0-300 bottles/min
Maximum power: 4000W
Power supply: 220V 60Hz
Machine size ( L*W*H): 500mm*500mm*1090mm
Machine Net Weight: 75kg
Packaged Size: 1170mm*610mm*570mm

920mm*410mm*270mm

Package Weight: 95KG
Note: The size and weight of the machine are subject to the actual factory packaging.

UBM-200YT Automatic Round Bottle Labeling Machine

SED-200YT model vertical type round bottle Round Bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
Working Principle:

Put the bottles into the conveyor system (or Auto Bottle Ordering Machine is optional), the conveyor will transport the bottles to labeling station. There is automatic sensor equipped on the machine will sense the passed bottle and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

Main Feature:

  • The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)
  • PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.
  • The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.
  • The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.
  • Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.
  • The position of height and backwards or forwards are adjustable.
Main Technical Data:
Driver Motor: Stepping motor
Operation: Right or left
Running speed: 50-120 bottles/min
Packaging Range: Ф 15 – Ф diameter 100 mm

Height 25-350mm

Label size width 10-150mm length 15-200mm

Maximum diameter of label: Ф 300mm
Coil diameter: Ф75mm label
Weight: 300kg
Power supply: AC220V  0.5Kw 60HZ
Overall Size: 1850*730*1400mm
*Ribbon Coding machine HP 260Q
Configuration£º
Name Manufacturer
Electric machinery Maili Electric
Photoelectric sensor Germany Sick
Pneumatic components Airtec International Group
Leakage protection CHINT China
Switch button Taiwan MeanWell
Human interface Taiwan Delta

Product Picture

Coding Machine for printing Bach Number



Our Service

  • Through years of experience, Qualipak provides several services which cover almost all requirements of clients. These services include production, design, inspection, packaging, shipment, product recommendation, after-sales service,  and multiple client solutions.
  • We can supply m§Ñsk raw materials for you if you can’t buy materials from in your local market.
  • We have a good relationship with more than four international shipping companies who have rich experiences in handling different kinds of shipping ways and also the customs declarations and clearances. They all have good shipping services to save you time and costs.
  • We have a professional international technical team. To provide you with after-sales service and guidance.

After-sale Service

We will always be responsible for the machine you purchased. Nearly 10 professional after-sales personnel provide global technical services. In this way, we also provide professional services, such as guide installation services, equipment commissioning and operation services, maintenance services and equipment parts replacement. Ensure the quality of your products, while eliminating your worries.

  1. 1. The whole machine is guaranteed for 1 years.

  2. 2. Provide professional machine operation and maintenance guidelines.

  3. 4. Provide 24-hour online professional technical services .

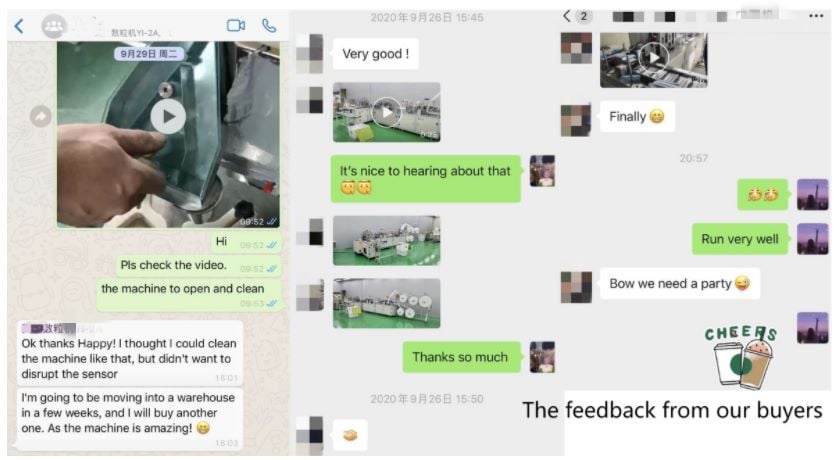

Customer Feedback
